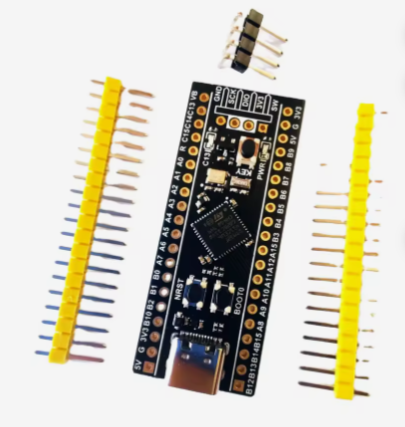

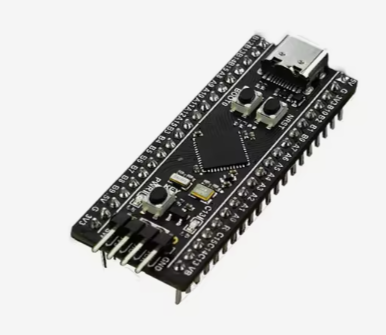

STM32F411 BlackPill Development Board
HighPerformance ARM CortexM4 Development Board
The BlackPill is a compact and affordable development board featuring the STM32F411CEU6 microcontroller. It offers significant performance improvements over the older "Blue Pill", including a faster core and more memory, making it ideal for complex embedded and IoT projects [citation:7].
HighPerformance CortexM4 100MHz ARM CortexM4 core with Floating Point Unit
Generous Memory - 512KB Flash and 128KB SRAM for demanding applications
Powered via USB Type-C or 3.3V pin, with a 3.3V 100mA LDO regulator on board.
Use the DFU bootloader via the USB Type-C port for programming; no external programmer is needed.
Note that the same GPIO pin can have multiple functions; check the datasheet for multiplexing details.
Technical Specifications
| Parameter | Value |
|---|
| Processor | STM32F411CEU6 ARM Cortex-M4 with FPU [citation:2] |
| Clock Speed | 100MHz [citation:2] |
| Flash Memory | 512KB [citation:4] |
| SRAM | 128KB [citation:4] |
= Board Features =
USB TypeC Port Modern connector for power and programming [citation:7].
Programmable Buttons - Includes RESET, BOOT0, and a user button on PA0 [citation:8].
Multiple Communication Interfaces - Supports UART, I2C, SPI, I2S, and USB [citation:8].
Option for SPI Flash - Solder pads for external memory expansion [citation:8].
Onboard LEDs Power and usercontrollable LED [citation:8].
= Common Applications =
- Robotics and motor control projects
- Data acquisition systems
- Advanced IoT and automation nodes
- Custom keyboard and HID devices
Powerful and Affordable A highly capable MCU at a budgetfriendly cost.
Rich Ecosystem Supports Arduino (via STM32duino), MicroPython, CircuitPython, and baremetal development [citation:1][citation:8].
√ Small, breadboard-friendly footprint.
√ Compatible with popular Mbed OS and Zephyr OS [citation:9].
