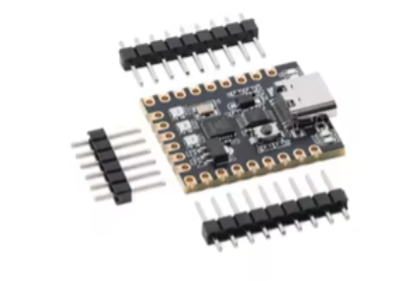

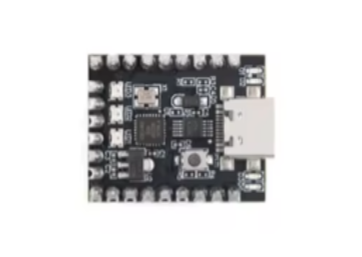

Arduino Super Mini Nano V3 ATmega328P Development Board
Compact Improved Version Microcontroller Core Module
This Super Mini Nano V3 board is a compact, breadboardfriendly development board based on the ATmega328P microcontroller [citation:7][citation:8]. It delivers the same powerful functionality as the larger Arduino boards in a spacesaving design, ideal for embedding in projects or prototyping on a breadboard [citation:2][citation:3].
Compact and BreadboardFriendly Ideal for space-constrained projects and permanent embedding.
ATmega328P Core Reliable 8bit AVR microcontroller running at 16MHz.
Board features a CH340G USBtoserial chip for easy programming and communication [citation:1][citation:5][citation:8].
Select "Arduino Nano" board and "ATmega328P" processor in the Arduino IDE [citation:5][citation:8].
I/O pins operate at 5V logic level - use level shifters for 3.3V devices.
Technical Specifications
| Parameter | Value |
|---|
| Microcontroller | ATmega328P |
| Clock Speed | 16MHz [citation:5][citation:7] |
| Operating Voltage | 5V [citation:3][citation:7] |
| Input Voltage (recommended) | 7-12V [citation:3][citation:7] |
| Digital I/O Pins | 14 (6 with PWM) [citation:1][citation:5] |
| Analog Input Pins | 8 (A0-A7) [citation:1][citation:8] |
| Flash Memory | 32KB (2KB bootloader) [citation:1][citation:3] |
| SRAM | 2KB [citation:1][citation:5] |
| EEPROM | 1KB [citation:1][citation:5] |
| DC Current per I/O Pin | 40mA [citation:1][citation:3] |
= Key Features =
+Super Mini Footprint - Significantly smaller than standard Nano boards [citation:5].
+Improved USB Chip - Uses CH340G for better compatibility and stability [citation:8][citation:10].
+USBC Connectivity Modern reversible connector option available on many super mini versions [citation:1][citation:5][citation:9].
+BreadboardFriendly Standard 2.54mm pin spacing for easy prototyping [citation:8][citation:11].
+8 Analog Inputs Includes two extra analogonly pins (A6 and A7) [citation:8].
= Applications =
- Compact Arduino prototyping
- Wearable electronics
- Robotics and automation
- Sensor data acquisition
- Permanent project embedding
Full Arduino Compatibility - Works with standard libraries and sketches [citation:2][citation:8].
Versatile Power Options USB, 5V pin, or 712V via VIN [citation:2][citation:3].
√ ATmega328P with Arduino bootloader pre-installed [citation:1].
√ Includes pin headers (soldered or unsoldered depending on version).
√ Popular platform with extensive community support.
Troubleshooting
Board not detected:
- Install CH340G USB driver if not automatically recognized [citation:2][citation:6].
- Use a data-capable USB cable (not just charging cable) [citation:5].
- Try a different USB port.
Upload fails:
- Select Tools → Board → Arduino Nano.
- Select Tools → Processor → ATmega328P (or Old Bootloader for some clones) [citation:5][citation:8].
- Check correct COM port selection.
