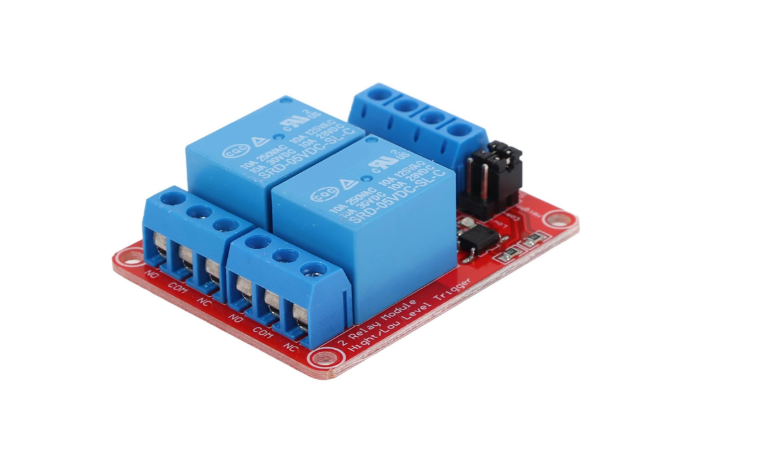

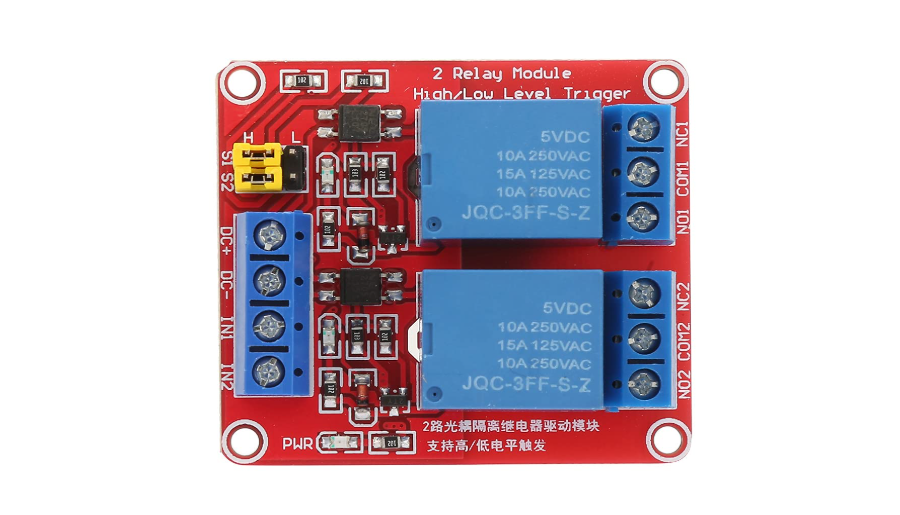

5V 2-Channel Relay Module
Overview
The **5V 2-Channel Relay Module** is designed for switching high-power devices using low-voltage signals. It can control AC or DC loads, making it ideal for home automation, IoT projects, and industrial control. The module features optocoupler isolation for safety and reliability.
Specifications
- Operating Voltage: 5V DC
- Trigger Voltage: 3.3V to 5V
- Relay Capacity: 250V AC at 10A or 30V DC at 10A
- Number of Relays: 2
- Trigger Type: Active LOW
- Isolation: Optocoupler for each relay
- LED Indicators: Show the state of each relay
- Dimensions: Approx. 50mm x 38mm
Pinout
| Pin | Name | Description |
|---|---|---|
| 1 | VCC | 5V power supply |
| 2 | GND | Ground |
| 3 | IN1 | Control signal for Relay 1 |
| 4 | IN2 | Control signal for Relay 2 |
Working Principle
Each relay operates using a control signal (3.3V-5V). When a signal is sent to the input pin (e.g., IN1), the corresponding relay activates, closing the Normally Open (NO) circuit and powering the connected load. The module uses optocouplers to isolate the control circuit from the high-power circuit, ensuring safety and protecting the microcontroller.
Relay Terminals
- **COM**: Common terminal
- **NO (Normally Open)**: Connects to COM when the relay is active
- **NC (Normally Closed)**: Connects to COM when the relay is inactive
Applications
- Home automation
- Industrial equipment control
- IoT-based projects
- Robotics
- Smart irrigation systems
