VL53L1X Laser Ranging Flight Time Sensor

A comprehensive guide on the VL53L1X Time-of-Flight (ToF) sensor, its features, working principle, and applications.

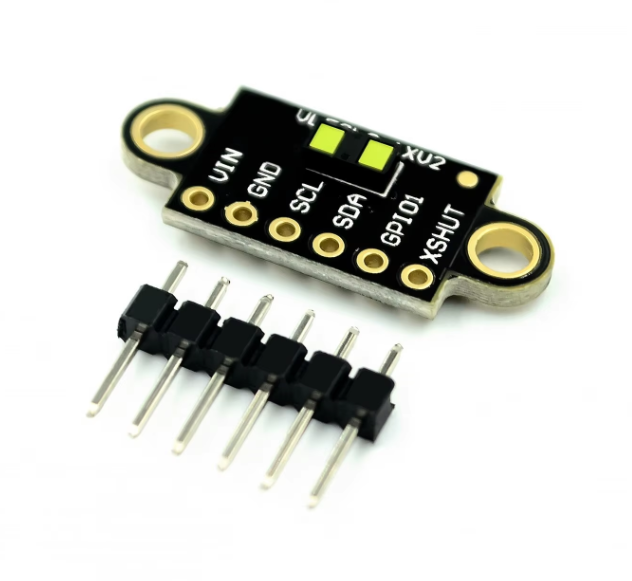

Introduction to VL53L1X

The **VL53L1X** is a **Time-of-Flight (ToF) laser ranging sensor** that utilizes advanced infrared light to measure distances precisely. Developed by **STMicroelectronics**, this sensor is part of their **FlightSense™** range. It uses a laser light pulse and measures how long it takes for the pulse to reflect off an object and return to the sensor, giving highly accurate distance measurements.

Unlike traditional ultrasonic or infrared distance sensors, the **VL53L1X** provides superior accuracy, operates in various lighting conditions, and can measure distances of up to **4 meters** with high precision, making it suitable for a variety of applications such as robotics, drones, automotive, and more.

Pinout of VL53L1X Sensor

Below is the pinout of the **VL53L1X** sensor, detailing each pin's function for connecting to a microcontroller such as an Arduino or Raspberry Pi:

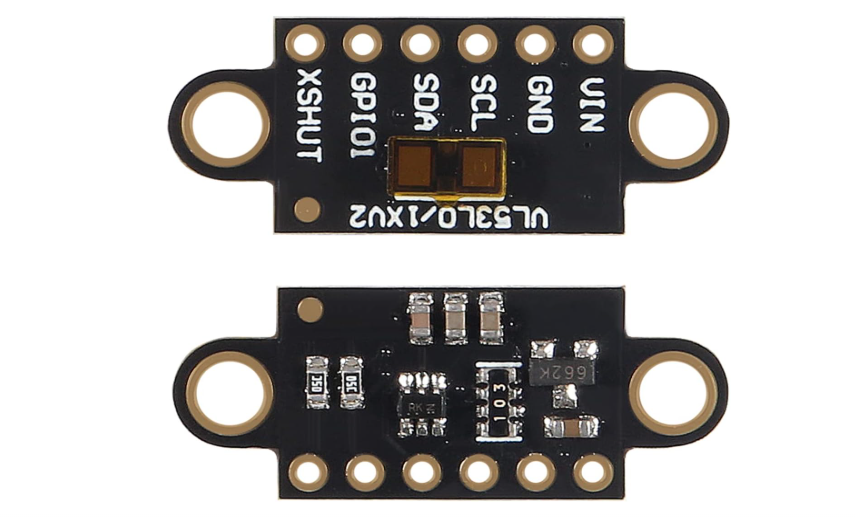

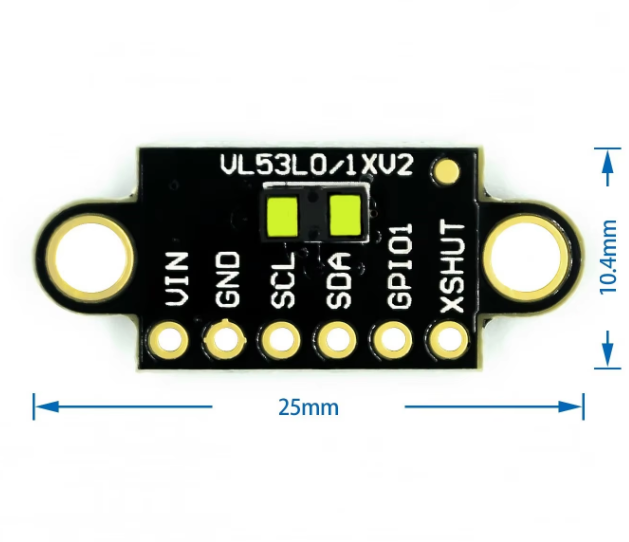

Pinout Diagram of VL53L1X

Below is a pinout diagram that visually illustrates the various pins on the VL53L1X sensor. This will help you connect the sensor to your microcontroller accurately.

Working Principle of VL53L1X

The **VL53L1X** sensor works based on the **Time-of-Flight (ToF)** principle. The sensor emits a modulated infrared light signal, which travels towards the object and is reflected back towards the sensor. By measuring the time it takes for the light pulse to return, the sensor can calculate the distance to the object with high precision.

The sensor uses a laser light pulse which travels much faster and with greater precision than standard infrared light, allowing the VL53L1X to measure distances over a much longer range (up to **4 meters**) with an accuracy of around **1 mm**. The **modulated laser light** is not affected by ambient light conditions, which makes it highly reliable in diverse lighting situations.

Applications of VL53L1X

The VL53L1X has a wide range of applications due to its **high precision** and **long-range measurements**. Some common applications include:

• **Robotics**: For precise obstacle detection and avoidance in autonomous robots.
• **Drones**: For accurate altitude and obstacle distance measurement, enabling safe flight in dynamic environments.
• **Automotive**: Used for parking assist systems, adaptive cruise control, and autonomous vehicles.
• **Industrial automation**: Distance monitoring in manufacturing processes for quality control or assembly line robots.
• **IoT Devices**: Distance measuring capabilities in smart home devices such as room occupancy sensors, smart lighting systems, etc.
• **Wearables**: Used in personal gadgets for proximity sensing, health monitoring, and gesture control.

Example Code to Interface VL53L1X with Arduino

Below is a simple example code to interface the VL53L1X sensor with an Arduino using I2C communication:

        #include
        #include

        VL53L1X sensor;

        void setup() {
            Serial.begin(9600);
            Wire.begin();
            sensor.setTimeout(500);
            if (!sensor.init()) {
                Serial.println("Sensor initialization failed.");
                while (1);
            }
            sensor.startContinuous();
        }

        void loop() {
            Serial.print("Distance (mm): ");
            Serial.println(sensor.read());
            delay(100);
        }
