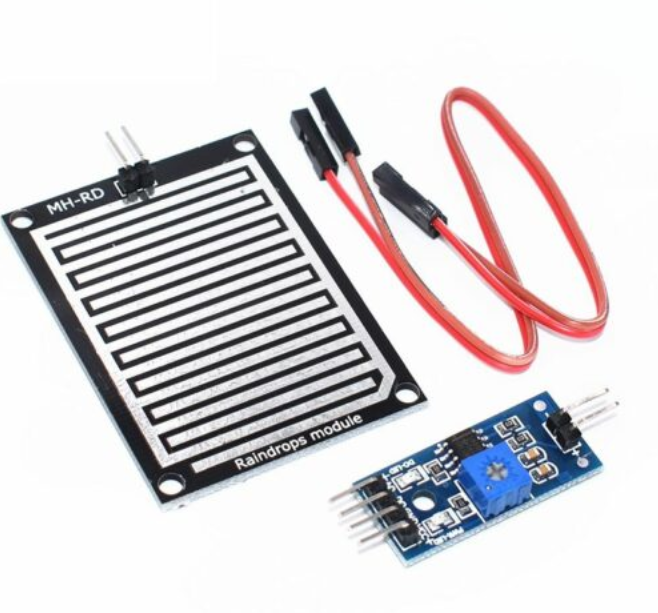

Rain Water Sensor

Introduction

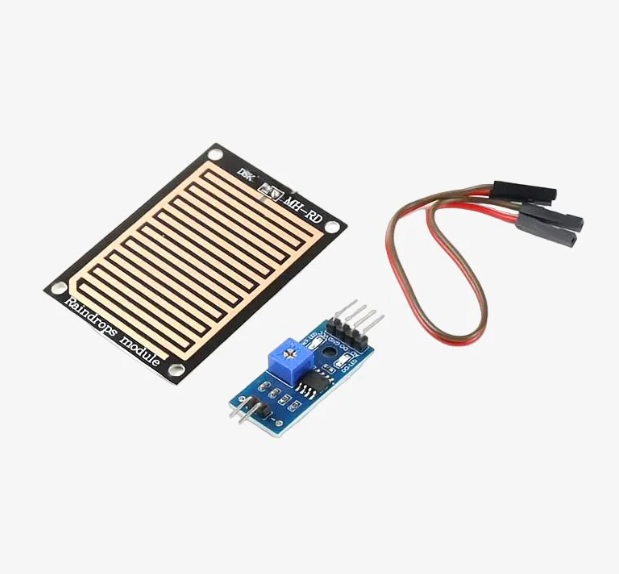

The Rain Water Sensor is a device used to detect water and measure its intensity. It works by sensing the resistance between conductive tracks on the sensor board. When water touches the tracks, the resistance changes, allowing the system to determine the presence or absence of water and its volume.

Pinout

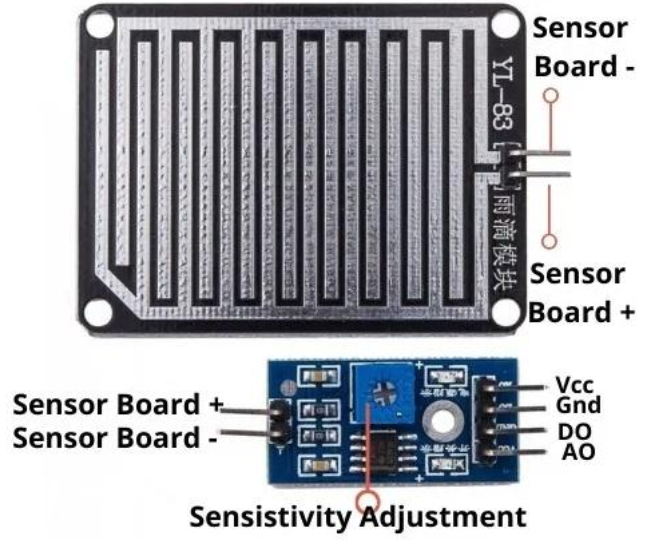

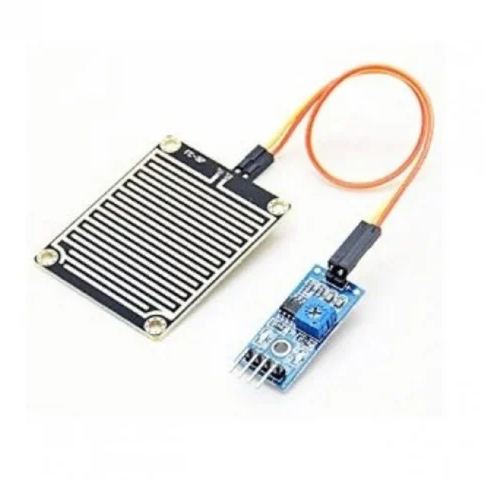

The Rain Water Sensor module typically consists of two main components: a sensor board and a control board. The control board has the following pin configuration:

• VCC: Connects to the power supply (3.3V to 5V).
• GND: Ground connection.
• DO: Digital Output pin. Outputs HIGH when no water is detected and LOW when water is present.
• AO: Analog Output pin. Provides a variable voltage based on the water level or intensity.

Working Principle

The Rain Water Sensor works by detecting the presence of water on its conductive tracks. Here's how it operates:

1. When no water is present, the resistance between the tracks is high, resulting in a low analog signal and HIGH digital output.
2. When water droplets fall on the sensor tracks, the resistance decreases, causing an increase in the analog signal and a LOW digital output.
3. The control board processes these signals and sends them to the microcontroller for further use.

In simple terms, the sensor detects water presence by measuring changes in electrical conductivity between its tracks.

Features

The Rain Water Sensor is a versatile and low-cost device with the following features:

• Can detect water and measure its intensity.
• Works with both digital and analog outputs.
• Adjustable sensitivity via a potentiometer on the control board.
• Low power consumption, making it suitable for battery-operated projects.
• Compact size for easy integration into systems.

Applications

Due to its simplicity and reliability, the Rain Water Sensor is widely used in various applications, including:

• Weather monitoring systems.
• Smart irrigation systems for agriculture.
• Rain detection in outdoor automation projects.
• Flood warning systems.
• Water level monitoring for storage tanks.

Troubleshooting

Common issues with the Rain Water Sensor and their solutions:

• Unstable Readings: Ensure a stable power supply and clean sensor tracks to avoid interference.
• No Detection: Check for proper connections, and ensure the potentiometer is adjusted correctly.
• Corrosion: Use a water-resistant coating or shield the sensor if exposed to the elements for prolonged periods.
