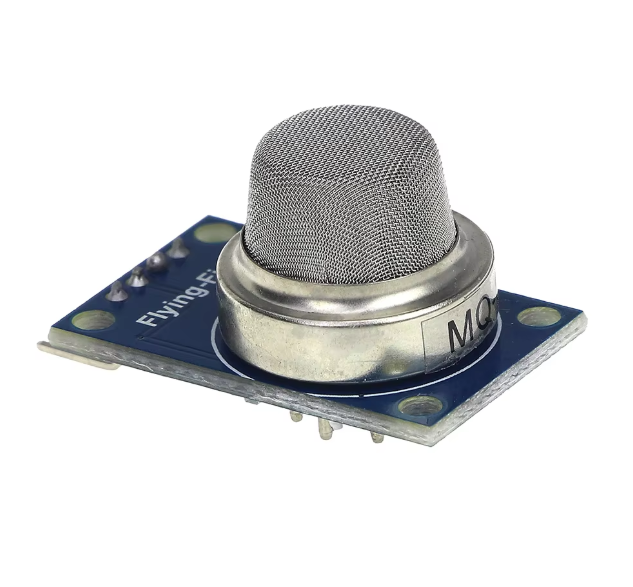

MQ-6 Gas Sensor

Introduction

The MQ-6 is a versatile gas sensor primarily used for detecting gases such as LPG (Liquefied Petroleum Gas), Propane, and Methane. This sensor is widely used in safety applications, particularly for gas leakage detection, offering quick response time and high sensitivity.

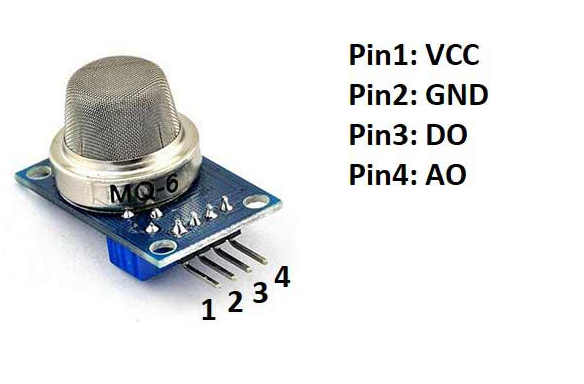

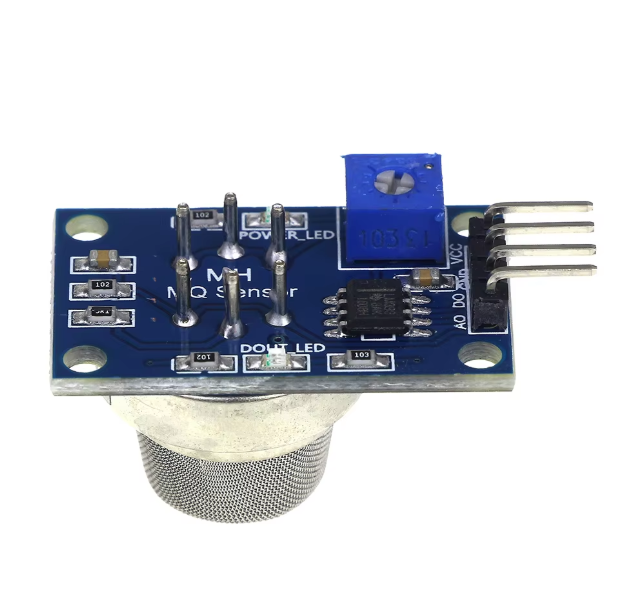

Pinout

The MQ-6 gas sensor typically comes with the following pins:

Working Principle

The MQ-6 sensor uses a semiconductor layer to detect gases. The working principle can be summarized as follows:

1. The sensor contains a SnO₂ layer whose conductivity changes when exposed to gases like LPG, methane, or propane.
2. When the gas concentration increases, the conductivity of the SnO₂ layer increases, which is reflected as a higher voltage output.
3. The analog output (AO) provides a voltage proportional to the gas concentration.
4. The digital output (DO) triggers a HIGH signal when the detected gas concentration exceeds a certain threshold.

Features

The MQ-6 gas sensor offers the following features:

• Can detect gases like LPG, Methane, and Propane.
• Fast response time and high sensitivity to target gases.
• Analog and digital output options for easy interfacing with microcontrollers.
• Low power consumption and long lifespan.
• Versatile applications in gas leak detection and safety systems.

Applications

Some common applications of the MQ-6 sensor include:

• Gas leak detection in homes and industries.
• Monitoring gas levels in kitchens and laboratories.
• Safety systems in industrial plants to prevent accidents.
• Smart home applications for detecting gas leakage.
• Portable gas detection systems.

Calibration and Usage

The MQ-6 sensor requires calibration for accurate gas concentration detection:

1. Allow the sensor to warm up for at least 24 hours before first use.
2. Place the sensor in a well-ventilated area to set the baseline with clean air.
3. Use known concentrations of the target gas (LPG, Methane, etc.) for calibration.
4. Adjust the analog or digital output to set the gas concentration threshold.

Troubleshooting

Here are some common issues and their solutions:

• No output or incorrect readings: Ensure proper power supply and correct connections.
• Unstable analog output: Check for contamination or humidity in the environment.
• Digital output triggers incorrectly: Adjust the threshold potentiometer to set the proper detection level.
