In Stock
Price: KSH 30.00

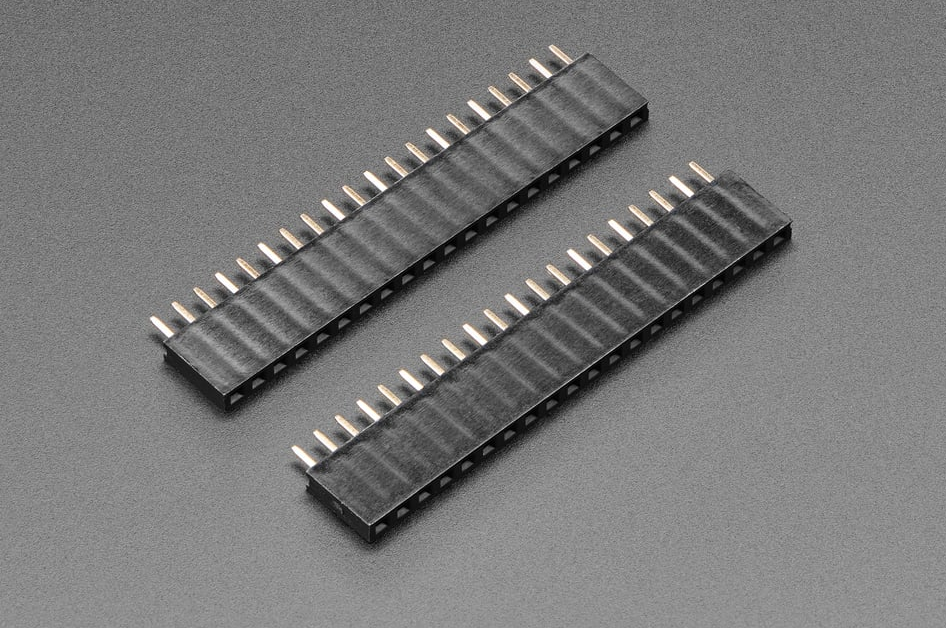

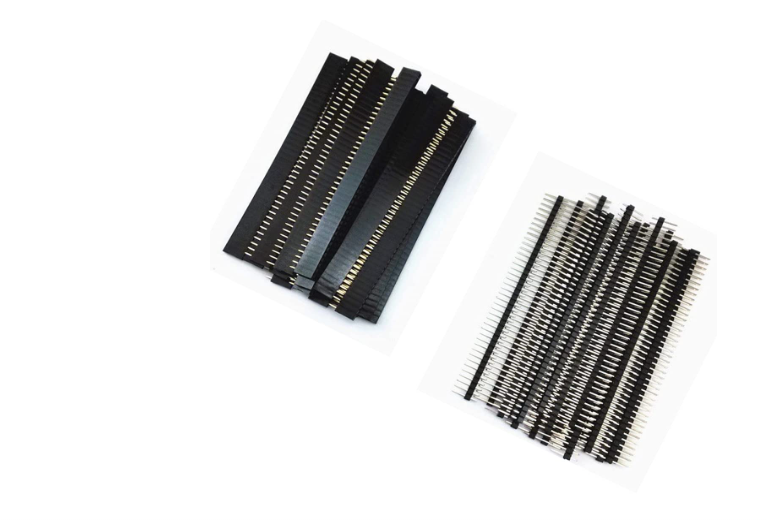

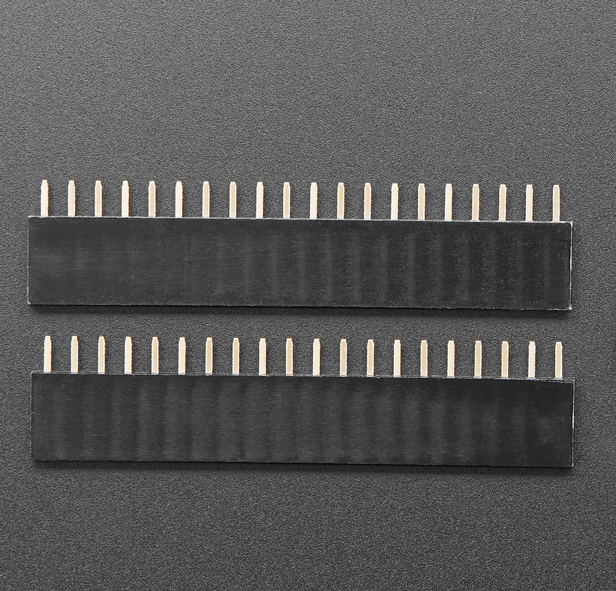

Header Pin Female 1x40 (2.27mm Pitch)
Specifications, Features, Applications, and More
Features
- Female header pin with 40 connectors arranged in a single row.
- Standard 2.27mm pitch (distance between pins).
- High-quality material for durability and secure connections.
- Compatible with PCBs, breadboards, and various electronic modules.
- Supports both soldered and non-soldered applications.
Specifications
| Parameter | Specification |
|---|---|
| Number of Pins | 40 |
| Pitch | 2.27mm |
| Material | Gold-plated copper alloy (pins), durable plastic casing |
| Height | 11.5mm (approx.) |
| Pin Length | 3.5mm |
| Operating Temperature | -55°C to +125°C |
| Compatibility | PCBs, breadboards, Arduino, Raspberry Pi, and other modules |
Applications
- Interfacing with PCBs and breadboards in prototyping and development.
- Used as a connector in microcontroller and sensor modules.
- Essential for stacking PCBs in compact designs.
- Common in robotics, IoT devices, and embedded systems.
- Electrical testing and debugging in circuit development.
Working Principle
The female header pin allows for easy and secure connections with male pins or jumper wires. Each pin slot is made of conductive material, enabling current flow and data transfer between connected devices. The 2.27mm pitch ensures compatibility with standard modules, while the durable plastic casing provides structural support.
