SIM800L GSM Module

Introduction

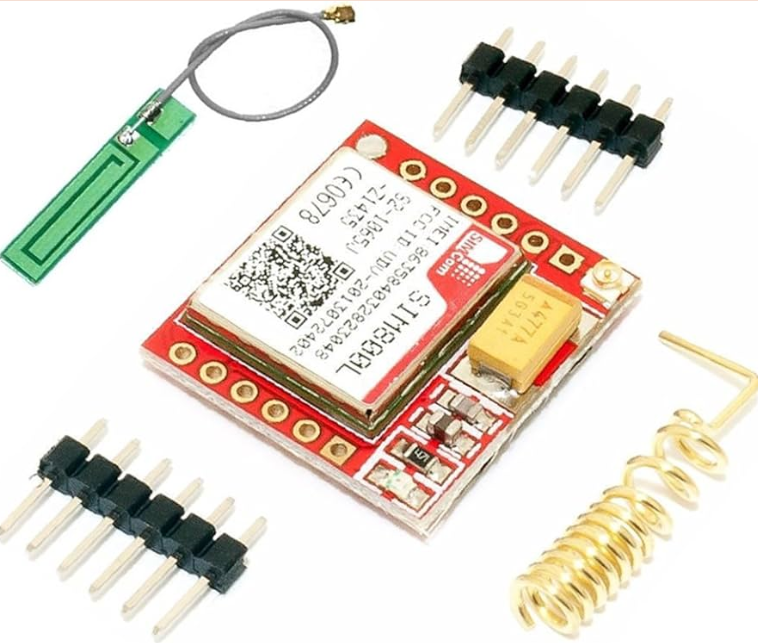

The SIM800L GSM module is a low-cost and compact solution for adding GSM/GPRS communication capabilities to embedded systems. It operates over a quad-band frequency (850/900/1800/1900MHz), making it suitable for use worldwide. The module supports voice, SMS, data, and fax over a GSM network and is commonly used in IoT applications.

Pinout

The SIM800L module has a compact pin configuration that allows easy integration into projects. Below are the pin descriptions:

• VCC: Power input (3.7V to 4.2V). Ensure a stable power supply, as the module requires high current during operation.
• GND: Ground connection.
• RXD: Receive Data. Connect to the TX pin of the microcontroller.
• TXD: Transmit Data. Connect to the RX pin of the microcontroller.
• RST: Reset pin. Pulling this pin LOW will reset the module.
• NET: Antenna connection. Use an external antenna for better signal reception.

Working Principle

The SIM800L module operates as a GSM communication interface between your microcontroller and the cellular network. Below is an overview of its working principle:

1. **Initialization:** The microcontroller communicates with the SIM800L using AT commands over UART. Commands such as AT, AT+CMGF, and AT+CMGS are used for sending messages and configuring the module.
2. **Network Registration:** After powering up, the module connects to a GSM network. The red LED on the module indicates the connection status (blinking fast means searching; blinking slowly indicates a connection).
3. **Communication:** Once connected, the module can perform operations like sending SMS, making calls, and connecting to the internet using GPRS.

Example: To send an SMS, you send AT commands like AT+CMGF=1 to set SMS mode, followed by AT+CMGS="phone_number" to send the message.

Features

The SIM800L module is packed with features that make it a versatile choice for GSM communication:

• Supports quad-band GSM/GPRS (850/900/1800/1900MHz).
• Ultra-compact size for integration into small devices.
• Supports GPRS multi-slot class 12 and CS-1, CS-2, CS-3, and CS-4 coding schemes.
• Built-in TCP/IP stack for internet connectivity.
• Voice call and SMS functionality.
• Power consumption is optimized for energy-efficient applications.

Applications

Thanks to its compact size and diverse capabilities, the SIM800L is used in a variety of applications, including:

• Home automation systems
• Vehicle tracking and GPS systems
• Remote monitoring and control devices
• Emergency alert systems
• IoT-based projects requiring GSM connectivity

Troubleshooting

Common issues when using the SIM800L module include:

• Power Supply Problems: The module requires a stable 3.7V to 4.2V power supply. Ensure the power source can handle peak currents up to 2A.
• Network Connection Issues: Use a SIM card with 2G enabled. Ensure the module is within a network coverage area.
• AT Command Errors: Check your baud rate (usually 9600) and ensure proper TX-RX connections.
• Weak Signal: Attach an external antenna for better reception.
