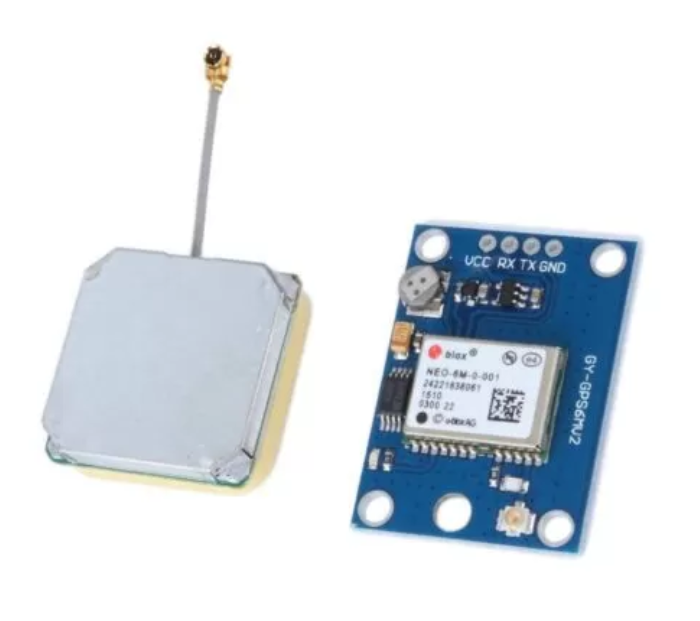

GPS NEO-6M Module

Introduction

The GPS NEO-6M module is a highly accurate GPS receiver designed for easy integration into various projects. It can track satellites and provide location, velocity, and timing data in real-time. It's widely used in navigation systems, robotics, and IoT projects.

Pinout

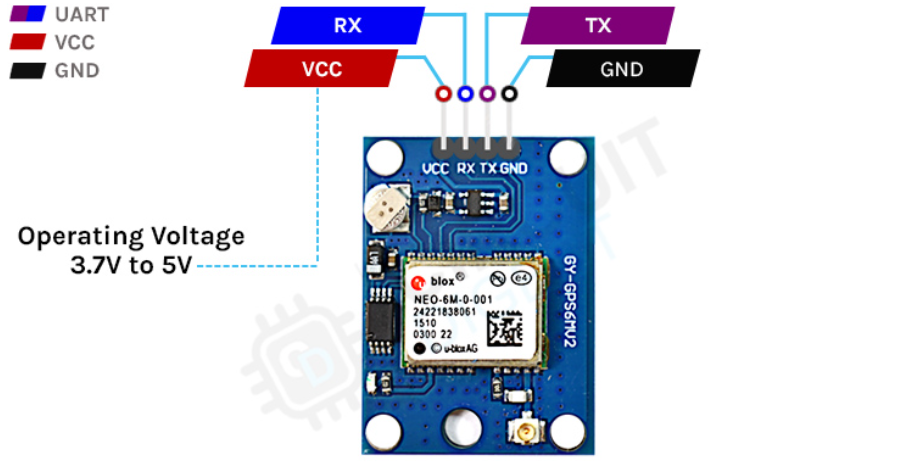

The NEO-6M GPS module typically comes with four pins:

Working Principle

The GPS NEO-6M module uses satellite signals to determine its location:

1. The module communicates with at least 4 satellites to calculate its position using trilateration.
2. It uses the time taken for signals to travel from satellites to determine distances.
3. The GPS receiver processes these distances to calculate latitude, longitude, altitude, and time data.
4. The data is sent via the TX pin in NMEA (National Marine Electronics Association) format for use in microcontroller-based systems.

Features

Key features of the GPS NEO-6M module include:

• High sensitivity (-161 dBm tracking).
• Low power consumption.
• Supports NMEA 0183 data output format.
• Built-in backup battery for maintaining configuration.
• Default baud rate of 9600 bps.

Applications

The GPS NEO-6M module is commonly used in:

• Vehicle tracking and navigation systems.
• Personal tracking devices.
• Drones and unmanned vehicles.
• Time synchronization in IoT systems.
• Geofencing and outdoor robotics.

Troubleshooting

Common issues and solutions:

• No GPS lock: Ensure the module has a clear view of the sky and check power connections.
• Data not received: Verify baud rate settings and serial connections.
• Intermittent data: Avoid interference from other RF devices and ensure the antenna is properly connected.
