Introduction
The 4x4 Keypad module is a matrix keypad with 16 buttons arranged in rows and columns. It is widely used in embedded systems for user input.

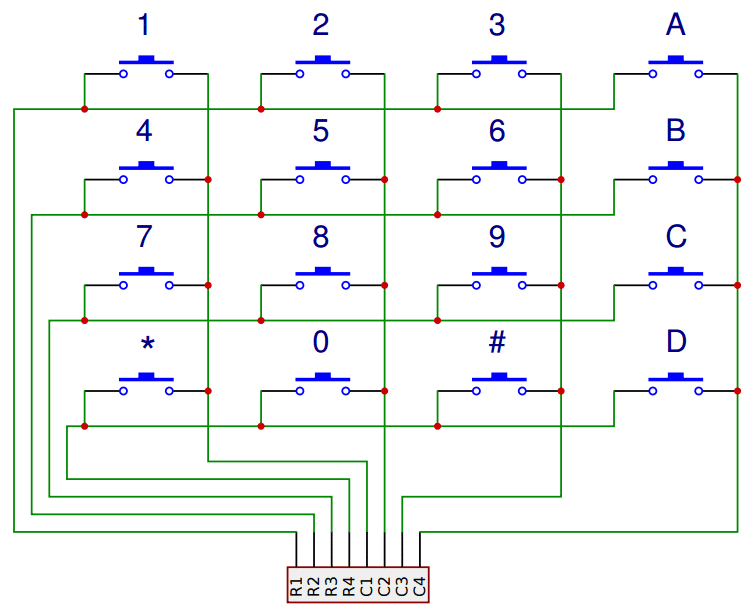

Pinout
Pin | Description |
---|---|
R1 | Row 1 |
R2 | Row 2 |
R3 | Row 3 |
R4 | Row 4 |
C1 | Column 1 |
C2 | Column 2 |
C3 | Column 3 |
C4 | Column 4 |
Working Principle
The 4x4 keypad operates on a matrix principle, where each button connects a specific row and column. The microcontroller scans the rows and columns to detect which button is pressed.
Example Code
#includeconst byte ROWS = 4; // Number of rows const byte COLS = 4; // Number of columns char keys[ROWS][COLS] = { {'1','2','3','A'}, {'4','5','6','B'}, {'7','8','9','C'}, {'*','0','#','D'} }; byte rowPins[ROWS] = {9, 8, 7, 6}; // Connect to the row pins of the keypad byte colPins[COLS] = {5, 4, 3, 2}; // Connect to the column pins of the keypad Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, ROWS, COLS); void setup() { Serial.begin(9600); } void loop() { char key = keypad.getKey(); if (key) { Serial.println(key); } }

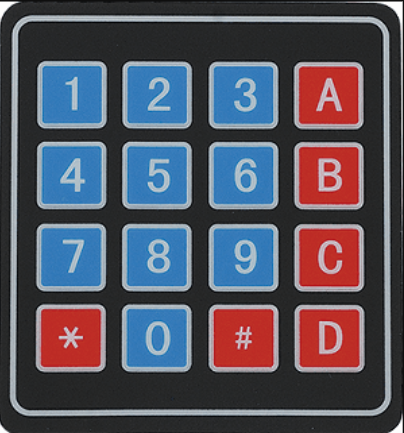

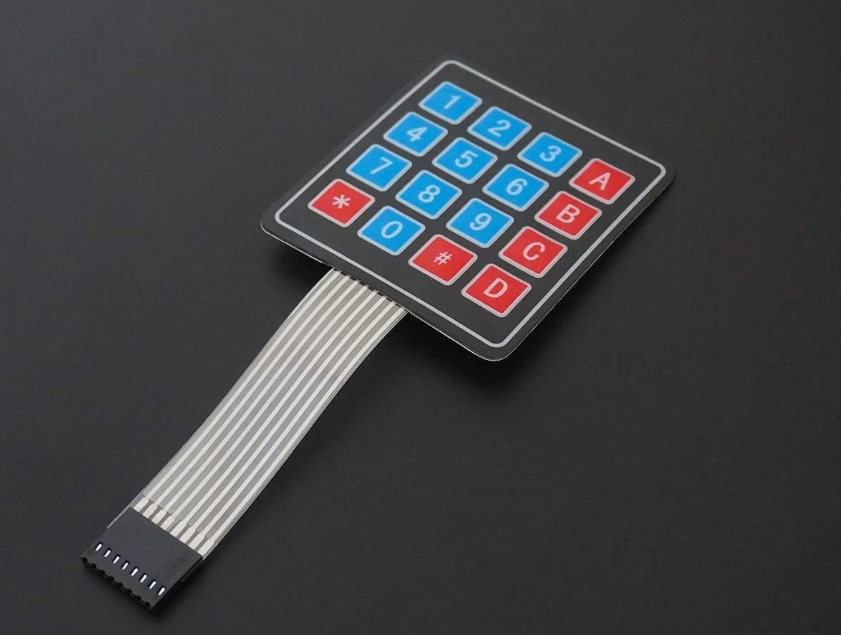

Keypad Image
