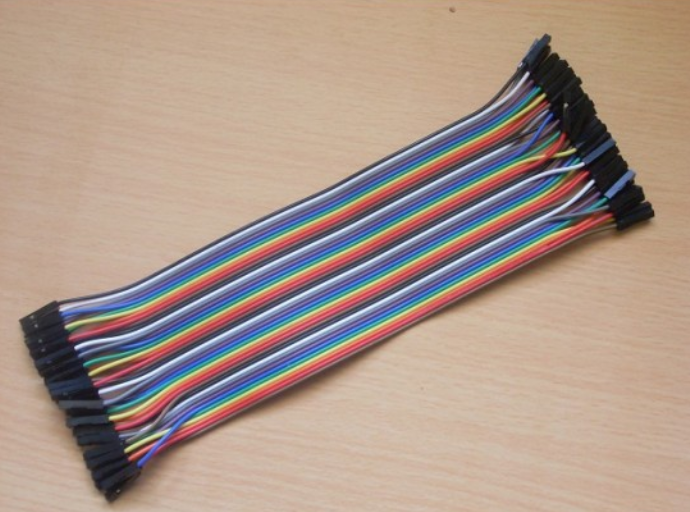

Its a 30pcs F-F jamper wires kit.
Learn about jumper wires, their types, and how they are used in electronic projects.
What are Jumper Wires?
Jumper wires are simple electrical connectors used to make temporary connections between electronic components. They typically have connectors at both ends that plug directly into breadboards or headers, allowing for easy prototyping and testing without the need for soldering.
Jumper wires come in a variety of sizes and types, typically color-coded for easy identification and organization.
Applications of Jumper Wires
- Connecting electronic components on a breadboard.
- Prototyping and testing circuits before soldering the final design.
- Connecting microcontrollers (like Arduino or ESP32) to various modules or sensors.
- Creating temporary power and ground connections during circuit design.
- Quick debugging of circuits by rerouting or connecting specific components.
Types of Jumper Wires
Jumper wires come in several configurations, each with its own use case:
- Male-to-Male: These jumper wires have male pins on both ends, typically used to connect between breadboards and components or headers.
- Female-to-Female: These jumper wires have female sockets on both ends, used to connect male headers or pins to other components.
- Male-to-Female: One end has a male pin, and the other has a female socket, often used to connect components with female headers to breadboards.
Jumper Wire Pinout
Jumper wires do not have a specific pinout because they are designed to connect two points directly. However, they are color-coded to help organize connections:
- Red: Commonly used for power (VCC or +). Usually, the positive rail on a breadboard.
- Black: Commonly used for ground (GND).
- Other Colors (Blue, Yellow, Green, etc.): Often used for signal connections or specific purposes, like data lines (e.g., I2C, SPI).
